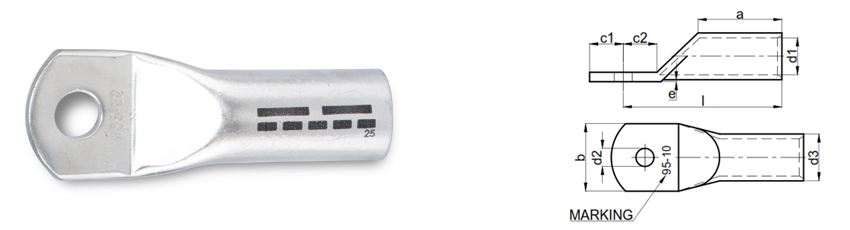

| Standard One Hole Copper Cable Lugs as per DIN 46235 | ||||||||||
| PART NO | Cable Mm2 | d2 | d1 | d3 | b | a | c1 | c2 | e | l |
| CWDIN65 | 6 | 5.3 | 3.8 | 5.5 | 8.5 | 10 | 7.5 | 7.5 | 0.6 | 24 |
| CWDIN66 | 6 | 6.4 | 3.8 | 5.5 | 8.5 | 10 | 9.0 | 9.5 | 24 | |
| CWDIN105 | 10 | 5.3 | 4.5 | 6.0 | 9.0 | 10 | 7.5 | 7.5 | 27 | |
| CWDIN106 | 10 | 6.4 | 4.5 | 6.0 | 9.0 | 10 | 9.0 | 9.5 | 27 | |
| CWDIN166 | 16 | 6.4 | 5.5 | 8.5 | 13.0 | 20 | 9.0 | 9.5 | 1 | 36 |
| CWDIN168 | 16 | 8.4 | 5.5 | 8.5 | 13.0 | 20 | 11.5 | 11.5 | 36 | |
| CWDIN1610 | 16 | 10.5 | 5.5 | 8.5 | 17.0 | 20 | 13.5 | 13.5 | 36 | |
| CWDIN256 | 25 | 6.4 | 7 | 10.0 | 14.0 | 20 | 9.0 | 9.5 | 38 | |
| CWDIN258 | 25 | 8.4 | 7 | 10.0 | 16.0 | 20 | 11.5 | 11.5 | 38 | |
| CWDIN2510 | 25 | 10.5 | 7 | 10.0 | 17.0 | 20 | 13.5 | 13.5 | 38 | |
| CWDIN2512 | 25 | 13.0 | 7 | 10.0 | 19.0 | 20 | 14.5 | 14.5 | 38 | |
| CWDIN358 | 35 | 8.4 | 8.2 | 12.5 | 17.0 | 20 | 11.5 | 11.5 | 42 | |
| CWDIN3510 | 35 | 10.5 | 8.2 | 12.5 | 19.0 | 20 | 13.5 | 13.5 | 42 | |
| CWDIN3512 | 35 | 13.0 | 8.2 | 12.5 | 21.0 | 20 | 14.5 | 14.5 | 42 | |
| CWDIN508 | 50 | 8.4 | 10 | 14.5 | 20.0 | 28 | 11.5 | 11.5 | 52 | |
| CWDIN5010 | 50 | 10.5 | 10 | 14.5 | 22.0 | 28 | 13.5 | 13.5 | 52 | |
| CWDIN5012 | 50 | 13.0 | 10 | 14.5 | 24.0 | 28 | 14.5 | 14.5 | 52 | |
| CWDIN5016 | 50 | 17.0 | 10 | 14.5 | 28.0 | 28 | 17.5 | 17.5 | 52 | |
| CWDIN708 | 70 | 8.4 | 11.5 | 16.5 | 24.0 | 28 | 11.5 | 11.5 | 2 | 55 |
| CWDIN7010 | 70 | 10.5 | 11.5 | 16.5 | 24.0 | 28 | 13.5 | 13.5 | 55 | |
| CWDIN7012 | 70 | 13.0 | 11.5 | 16.5 | 24.0 | 28 | 14.5 | 14.5 | 55 | |
| CWDIN7016 | 70 | 17.0 | 11.5 | 16.5 | 30.0 | 28 | 17.5 | 17.5 | 55 | |
| CWDIN9510 | 95 | 10.5 | 13.5 | 19.0 | 28.0 | 35 | 13.5 | 13.5 | 65 | |
| CWDIN9512 | 95 | 13.0 | 13.5 | 19.0 | 28.0 | 35 | 14.5 | 14.5 | 65 | |
| CWDIN9516 | 95 | 17.0 | 13.5 | 19.0 | 32.0 | 35 | 17.5 | 17.5 | 65 | |
| CWDIN12010 | 120 | 10.5 | 15.5 | 21.0 | 32.0 | 35 | 13.5 | 13.5 | 70 | |
| CWDIN12012 | 120 | 13.0 | 15.5 | 21.0 | 32.0 | 35 | 14.5 | 14.5 | 70 | |
| CWDIN12016 | 120 | 17 | 15.5 | 21 | 32.0 | 35 | 17.5 | 17.5 | 70 | |
| CWDIN12020 | 120 | 21 | 15.5 | 21 | 38.0 | 35 | 20.5 | 21.5 | 70 | |
| CWDIN15010 | 150 | 10.5 | 17 | 23.5 | 34.0 | 35 | 13.5 | 13.5 | 78 | |
| CWDIN15012 | 150 | 13 | 17 | 23.5 | 34.0 | 35 | 14.5 | 14.5 | 78 | |
| CWDIN15016 | 150 | 17 | 17 | 23.5 | 34.0 | 35 | 17.5 | 17.5 | 78 | |
| CWDIN15020 | 150 | 21 | 17 | 23.5 | 40.0 | 35 | 20.5 | 21.5 | 78 | |
| CWDIN18510 | 185 | 10.5 | 19 | 25.5 | 37.0 | 40 | 13.5 | 13.5 | 2 | 82 |
| CWDIN18512 | 185 | 13 | 19 | 25.5 | 37.0 | 40 | 14.5 | 14.5 | 82 | |
| CWDIN18516 | 185 | 17 | 19 | 25.5 | 37.0 | 40 | 17.5 | 17.5 | 82 | |
| CWDIN18520 | 185 | 21 | 19 | 25.5 | 40.0 | 40 | 20.5 | 21.5 | 82 | |
| CWDIN24012 | 240 | 13 | 21.5 | 29 | 42.0 | 40 | 14.5 | 14.5 | 92 | |
| CWDIN24016 | 240 | 17 | 21.5 | 29 | 42.0 | 40 | 17.5 | 17.5 | 92 | |
| CWDIN24020 | 240 | 21 | 21.5 | 29 | 45.0 | 40 | 20.5 | 21.5 | 92 | |
| CWDIN30016 | 300 | 17 | 24.5 | 32 | 48.0 | 50 | 17.5 | 17.5 | 100 | |
| CWDIN30020 | 300 | 21 | 24.5 | 32 | 48.0 | 50 | 20.5 | 21.5 | 100 | |
| CWDIN40016 | 400 | 17 | 27.5 | 38.5 | 55.0 | 70 | 23.5 | 17.5 | 3 | 115 |
| CWDIN40020 | 400 | 21 | 27.5 | 38.5 | 55.0 | 70 | 23.5 | 21.5 | 115 | |
| CWDIN50020 | 500 | 21 | 31 | 42 | 60.0 | 70 | 23.5 | 21.5 | 3 | 125 |
| CWDIN62520 | 625 | 21 | 34.5 | 44 | 60.0 | 80 | 23.5 | 21.5 | 135 | |
| CWDIN80020 | 800 | 21 | 40 | 52 | 75.0 | 100 | 23.5 | 21.5 | 4 | 165 |
| CWDIN100020 | 1000 | 21 | 44 | 58 | 85.0 | 100 | 23.5 | 21.5 | 165 | |
